Lattice
Vtex Lattices play important role at blow room process level in a
spinning mill. We supply quality lattices with well build computer
designed profile. Lattices have perfect pin spacing,
hardened and tempered spikes / carbon steel pins, humidity & flame
resist canvas backing, synthetic belt / nylon sandwich belt, solid
copper rivets, alloy steel screws and washers.
|
Lattices are available for blow room in Laminated Compressed Wood,
Aluminum & PVC to suit your application and machine specific
requirements. Hence the profile of wood, shape of spikes, space
between the spikes and overall dimensions are well designed to suit
specific requirement of each machine application. Lattices are made of
well seasoned wood, spikes are hardened and tempered, lags are fixed
to the high quality canvas backing (treated for water & flame
resistance) with aluminum base strips, synthetic belt/nylon sandwich
belt and by copper rivets and alloy steel screws & washers.
|
Lattices available for blow room are Spiked Lattice for hopper feeder,
Light & Heavy weight half round Lattice, Spike Lattice for heavy duty
blender, Krischner Beater lags & spiked lags for roving / hard waste
cylinders, Spiked Lattice for Unimix Systems.
|
Applications
Blow Room, Thresher, Willow, Rag Tearing, Carding, Scouring machines
and for any special applications for fibre or web conveying.
|

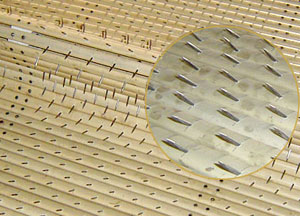

Spiked Lattice For Hopper Feeder
Lattice as seen in the Illustration opposite are fitted to Hopper
feeder of LMW / Rieter waste opener. Lags are made out of Laminated
wood fitted with special quality steel pins to withstand at a high
speed. Lags are fitted with Copper rivets & 5 no. Of Nyloflex belts of
50mm. Due to High Stresses we are advising to produce Lattice in
endless foam only.
Light & Heavy weight Half Round Lattice:
Lattice as seen in the illustration opposite are very often used for
conventional horizontal feeding of Bale Opener, Hopper Feeder, Etc.
Lags are Manufactured out of Laminated Wood & well seasoned Beach Wood
Legs, Shape may be of Half Round / Tapper & are fitted at any desired
between Center with 4/5 NYLOFLEX BELT, with or without Canvas & Also
with Copper Rivets Or Screw Fittings. Lattice may be supplied in
endless or open end so as to make endless on your Machine.
|
